C.V. Joints Explained: What Is a C.V. Joint and How Does It Drive Power to Wheels?
Yuhuan Bayzo Machinery Co., Ltd. is a professional Outer Constant Velocity Joints Manufacturers based in Yuhuan, Zhejiang — China's automotive parts manufacturing hub. We carry out the R&D, production and sales of constant velocity joints and drive shafts, and our outer C.V. joints are built for the wheel side of the half shaft, where they transmit engine torque to the hub and carry the steering deflection of the vehicle.
Our range covers wheel-side outboard joints with extended splined shafts, ABS ring versions, wear-resistant and shock-resistant variants, corrosion-resistant passenger car joints and drive-system joints. We supply global automotive aftermarket customers, distributors and project buyers with products developed from OE numbers, samples or drawings.
What an Outer C.V. Joint Does in the Drivetrain
As a Outer Constant Velocity Joints Manufacturers manufacturer, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.
The outer C.V. joint is mounted on the wheel side and connected to the hub assembly. Power flows from the engine through the half shaft and into the outer joint, which then drives the wheel. Because it sits at the steering end of the axle, it works at a larger deflection angle than the inner joint and takes on the steering function of the automobile.
That combination of torque transmission and high-angle articulation defines the design priorities: ball track geometry, cage and ball quality, spline fit, boot sealing and the strength of the bell housing. Our outer joints are produced with these functions in mind rather than as a generic metal part.
Our Outer C.V. Joint Range
We present the outer joint family as a set of application-matched variants. Each one answers a specific vehicle condition or installation requirement.
Extended Splined Shaft Joints
For layouts where the splined shaft length is fixed by the hub and bearing package. Example: 43460-69035 Outer C.V. Joint With Extended Splined Shaft.
ABS Ring Versions
Wheel-side joints with an integrated ABS ring for vehicles where wheel speed sensing is taken at the joint. Example: 43420-06710 Front Wheel Outer C.V. Joint with ABS Ring.
Wear and Shock Resistant Joints
For heavier duty cycles and rougher road conditions, where surface hardness and impact behaviour matter. Examples: 6QE498099 Wear Resistant Outer C.V. Joint and 96474835 Shock Resistant Automobile Axle Outer C.V. Joint.
Corrosion Resistant and Drive-System Joints

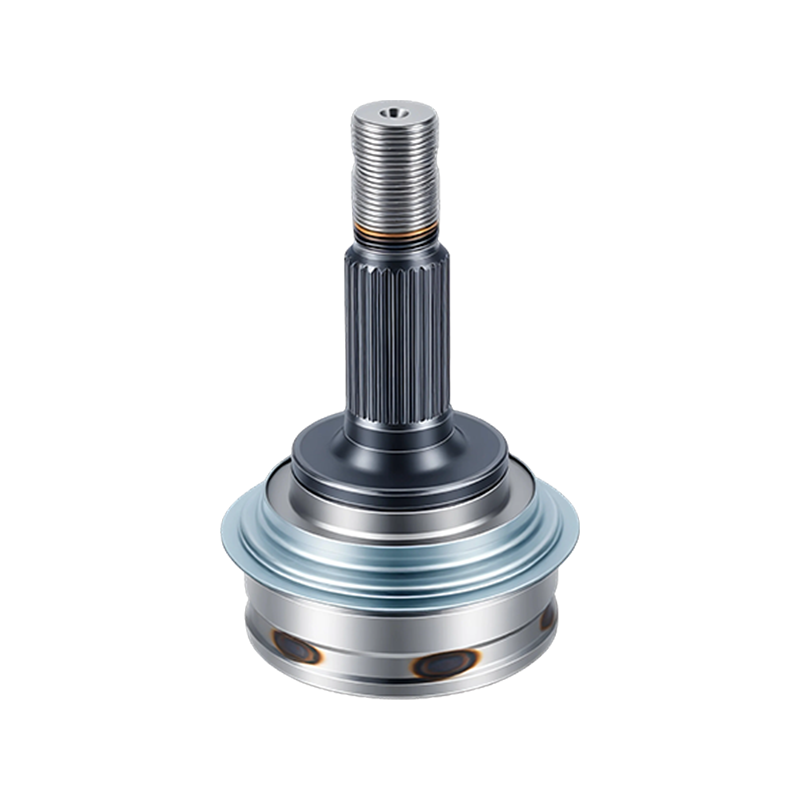

Surface-protected joints for wet or salt-exposed markets, plus passenger car drive-system joints. Examples: GM-824 Corrosion Resistant Outer Constant Velocity Joint and TO-04 Outer Constant Velocity Joint.
Where Outer Joints Fit in the Full Drivetrain Range
Outer joints are one part of the axle system we manufacture. The table below shows how our product families relate, so a project can be quoted as a single joint, a joint with boot kit, or a complete shaft assembly.
| Product Family | Position / Function | Typical Application |
|---|---|---|
| Outer C.V. Joints | Wheel side, high deflection angle, steering duty | Front wheel drive and independent rear suspension |
| Inner C.V. Joints | Transmission side, plunge and length compensation | Differential and transaxle output |
| Tripod Joints | Roller-type plunge joint for inboard positions | Front axle inboard and some rear axles |
| CV boot kit | Sealing, grease retention and contamination exclusion | Joint service and repair kits |
| Complete Drive Shaft Assemblies | Inner and outer joints on one balanced shaft | Direct replacement axle units |
| Drive Shaft Components | Shafts, joints and related metal parts | Repair, rebuild and assembly supply |
Critical Specifications We Work To
An outer joint is only correct when its interfaces match the vehicle. Our production and inspection planning centres on the dimensions and features that decide fitment and service life.
- Spline geometry — number of teeth, major and minor diameter, pressure angle and fit class at the hub interface.
- Ball track and cage — track form, ball diameter and cage window quality, which together govern articulation smoothness and torque capacity.
- Bell housing dimensions — outer diameter, face position and mounting features relative to the hub and bearing.
- ABS ring — presence, position and tooth count where wheel speed sensing is integrated into the joint.
- Material and heat treatment — through-hardened or case-hardened steel grades selected for the duty cycle, with surface hardness and finish controlled during machining.
- Sealing — boot material, clamp type and grease fill, which protect the joint from water, dust and grease loss.
Configuration Options and Custom Development
We support development and customization based on customer samples, drawings or OE numbers. That means a project can start from a worn part, a technical drawing or a catalogue reference, and we work from there to a confirmed specification.
- Joint variant selection: standard, extended splined shaft, ABS ring, wear-resistant or corrosion-resistant execution.
- Spline and interface adaptation to match the hub and half shaft of the target vehicle.
- Surface treatment and coating choices for humid, coastal or winter-salt markets.
- Boot kit pairing, grease specification and clamp selection for the service environment.
- Packaging solutions, brand labelling and related customization based on customer requirements.
Machining, Assembly and Quality Control
BAYZO focuses on C.V. joints, drive shafts and automotive drivetrain components with CNC machining, assembly, inspection and stable aftermarket supply support. CNC turning, milling and grinding processes help control the key dimensions of drivetrain components, with attention to machining accuracy, surface finish and production consistency.
Quality control runs from raw materials through machining and assembly to packaging and shipment. From assembly to final inspection, we control the key production steps so that fitment accuracy, appearance consistency and product performance stay stable, and each order is checked before shipment.
Batch and inventory discipline: semi-finished parts, finished components and product categories are managed in batches to improve order response, delivery efficiency and long-term supply stability for aftermarket programmes.
Installation, Maintenance and Serviceability
Outer joints are replaced as part of axle service, so the practical questions are boot integrity, grease condition and spline wear. Correct seating of the joint on the shaft, proper clamp tension and the right grease fill determine how long the joint lasts in service.
- Inspect the boot for cracks, tears and grease leakage at every service interval.
- Check for clicking or vibration at full steering lock, which points to ball track or cage wear.
- Confirm ABS ring condition and tooth integrity on ABS-equipped joints.
- Replace the boot kit and grease together with the joint when contamination has occurred.
- Keep spare joints and boot kits in stock for high-turnover vehicle platforms.
Information We Use to Configure Your Solution
To prepare a suitable configuration and quotation, we work from the following project inputs. The more precisely these are defined, the faster we can confirm the joint variant and production plan.
| Project Input | What It Determines |
|---|---|
| OE number, sample or drawing | Base geometry, spline form and interface dimensions |
| Vehicle model and axle position | Joint variant, deflection requirement and ABS ring need |
| Duty cycle and road conditions | Material, heat treatment and surface protection |
| Target quantity and order pattern | Batch planning, inventory arrangement and scheduling |
| Packaging and branding requirements | Box design, labelling and shipment scope |
| Destination market | Coating choice and documentation scope |
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional manufacturer with in-house production and inspection capabilities, ensuring a stable supply for our customers. Our plant is located in Yuhuan, Zhejiang, China's automotive parts manufacturing hub.
Do you support customization of outer C.V. joints?
Yes. We support development and customization based on customer samples, drawings or OE numbers, covering joint variant, spline interface, surface treatment and boot kit pairing.
Which markets do you mainly export to?
Our products are exported to Europe, America, the Middle East, Southeast Asia, Africa, Australia and other regions, serving global automotive aftermarket customers.
Can you provide custom packaging or branding?
Yes, we can provide packaging solutions, brand labelling and related customization services based on customer requirements.
How do you control product quality?
We apply strict quality control from raw materials, machining and assembly to packaging and shipment. CNC turning, milling and grinding control key dimensions, and each order is checked before shipment to ensure stable and reliable products.
Can you supply outer joints together with drive shafts and boot kits?
Yes. Our range covers outer and inner C.V. joints, tripod joints, boot kits, complete drive shaft assemblies and drive shaft components, so a programme can be supplied as individual joints or as assembled axle units. See our full Products range for the available families.
